Professional Nesting CNC Router Chaw tsim tshuaj paus
Zhongke CNC Equipment manufactures industrial Nesting CNC Router cov cav tov tsim rau kev txiav vaj huam sib luag, drilling, thiab engraving. Peb cov kev daws teeb meem CNC zes pab cov tuam txhab tsim rooj tog, cov chaw ua haujlwm ntoo, thiab cov tuam txhab ua lag luam hauv kev txhim kho kev tsim khoom los ntawm kev siv tshuab ua haujlwm, txiav txiav, thiab kev siv cov khoom zoo.
Nrog rau ntau tshaj 15 xyoo ntawm CNC manufacturing kev, Zhongke CNC Equipment muab configurable Nesting CNC Router systems raws li kev cai ntau lawm. Cov tshuab no tuaj yeem hloov kho nrog qhov sib txawv ua haujlwm, kev teeb tsa spindle, lub tshuab nqus tsev tsim, thiab kev ua haujlwm automation.
Vim Li Cas Xaiv Peb
Muaj peev xwm ntau lawm
Zhongke CNC Equipment integrates CNC tshuab tshawb fawb, manufacturing, thiab muag. Peb muab cov cuab yeej ua tiav ncaj qha rau cov neeg siv khoom lag luam thoob ntiaj teb los ntawm peb cov chaw tsim khoom tshwj xeeb.
Flexible Machine Configuration
Peb kho qhov chaw ua haujlwm, xaiv lub zog ntxaiv, tsis siv neeg thauj khoom, thiab lub taub hau drilling kom ua raws li koj cov txheej txheem tsim khoom.
Stable Machining Performance
Lub tshuab thav duab, kis tau tus mob, thiab cov khoom siv tswj tau raug tsim los ua haujlwm tas mus li, tswj kev ua haujlwm zoo ib yam ntawm cov khoom siv ntev.
Daim ntawv thov -Cov kev daws teeb meem
Peb Nesting CNC Router tshuab tau teeb tsa rau vaj huam sib luag rooj tog tsim khoom, txee tsim khoom, ua cov rooj ntoo, thiab cov ntawv siv ntoo.
Technical Specifications
|
Yam khoom |
Technical Specification |
|
Chaw ua haujlwm |
1300 x 2500 mm, 1500 x 3000 mm, 2100 x 3000 mm (Qhov ntau thiab tsawg muaj) |
|
Spindle zog |
6.0 kW, 9.0 kW, lossis 12.0 kW siab -ceev spindles |
|
Spindle Ceev |
18,000 RPM txog 24,000 RPM (Adjustable ntawm zaus inverter) |
|
Tsav System |
Siab -precision helical khib thiab pinion ntawm X / Y axes, pob ntsia hlau ntawm Z axis |
|
Tswj System |
Muaj-qib CNC tswj qhov system nrog rau tes log |
|
Hom rooj |
Multi-zone nqus adsorption rooj nrog pneumatic positioning pins |
|
Kev ua kom raug |
± 0.03 hli positioning raug |
|
Cov ntaub ntawv siv tau |
Ntoo, MDF, plywood, yas, acrylic, composite cov ntaub ntawv |
Khoom Series
Zhongke CNC Equipment muab qhov sib txawv Nesting CNC Router configurations kom phim ntau yam ntau lawm teev thiab automation yuav tsum tau:
Standard Nesting CNC Router
Daim ntawv thov Focus:General vaj huam sib luag txiav thiab engraving
Cov yam ntxwv tseem ceeb:Siab -flow lub tshuab nqus tsev, phau ntawv thauj khoom tsim, ib zaug - spindle configuration

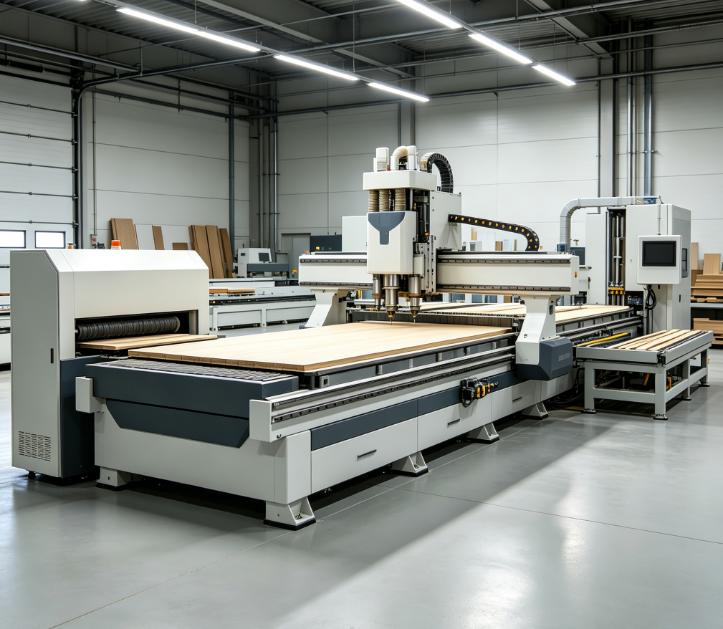

Tsis siv neeg Loading Nesting CNC Router
Daim ntawv thov Focus:Nruam ntau lawm nrog txo kev tuav tuav
Cov yam ntxwv tseem ceeb:Integrated txiab nqa loading platform, tsis siv neeg cov khoom sib dhos, unloading conveyor
CNC Nesting Machining Center
Daim ntawv thov Focus:Txiav, drilling, thiab machining kev koom ua ke
Cov yam ntxwv tseem ceeb:Automatic tool changer (ATC) carousel, multi-spindle ntsug drilling bank
Multi-Spindle Nesting CNC Router
Daim ntawv thov Focus:Ntau- txheej txheem ntau lawm yuav tsum
Cov yam ntxwv tseem ceeb:Ntau qhov kev ywj pheej spindles rau kev hloov pauv sai yam tsis muaj kev cuam tshuam
Customized Nesting CNC System
Daim ntawv thov Focus:Tshwj xeeb ntau lawm kab yuav tsum
Cov yam ntxwv tseem ceeb:Kev cai rooj qhov ntev, kev cai software kev koom ua ke, thiab tsis siv neeg thauj khoom / unloading kab
Khoom siv & kev siv
Zhongke Nesting CNC Router tshuab txheej txheem ntau yam ntawm cov ntaub ntawv muaj ntaub ntawv nrog huv npoo thiab siab pub tus nqi:
|
Khoom siv |
Cov ntawv thov tseem ceeb |
|
MDF Board |
Txee qhov rooj, rooj tog vaj huam sib luag, zoo nkauj phab ntsa panels, yoj boards |
|
Plywood |
Cov khoom siv rooj tog zaum, cov tub rau khoom, cov khoom siv sab hauv architectural |
|
Khoom Ntoo Panels |
Kev cai ntoo qhov rooj, khoom ntoo rooj tog, tshwj xeeb joinery |
|
Acrylic & Plastic Sheets |
Exhibition qhia, cov paib, muaj cov khoom yas |
|
Cov khoom siv sib xyaw |
Rwb thaiv tsev panels, aluminium composite panels, phenolic compact laminates |
Automation nta
Tsis Siv Neeg Loading System
Ib qho hnyav -lub luag haujlwm hydraulic txiab nqa thiab lub tshuab nqus tsev nqus lub khob ntim tau hloov cov ntawv nyoos mus rau lub rooj ua haujlwm.
01
Vacuum Table Optimization
Multi-zone nqus plua plav adsorption rooj ruaj ntseg workpieces ntawm ntau qhov ntau thiab tsawg yam tsis muaj phau ntawv clamping.
02
Integrated Txiav thiab Drilling
Vertical tho txawv taub hau ua cov ntsia hlau qhov drilling thiab kev tsim kho tho txawv ua ntej lub voj voog txiav pib.
03
Automatic Tool Hloov System
Cov ntawv xov xwm tawm los yog cov cuab yeej teb sib pauv cov cuab yeej hauv vib nas this los ua routing, carving, thiab pocketing nyob rau hauv ib lub voj voog tas li.
04
Automated Unloading Pusher
Integrated unloading sweeps thawb cov khoom tiav mus rau hauv txoj siv conveyor thaum tib lub sijhawm tshem cov plua plav thiab cov khib nyiab.
05
Nesting Technology Advantages
Txhim kho daim ntawv siv
Optimized txiav txoj kev txo qhov sib nrug ntawm qhov chaw, ua kom cov txiaj ntsig zoo los ntawm txhua lub vaj huam sib luag nyoos.
Txo cov khoom pov tseg
High -yield layouts txo cov khoom seem, txo nqi tag nrho cov khoom.
Faster Batch Npaj
High - txoj kev ua haujlwm ceev tso cai rau kev teeb tsa sai thiab ua tiav cov qauv nested.
Ntau yam Manufacturing
Kev ua haujlwm zes ua kom haum rau ob qho tib si siab - ntim cov qauv tsim thiab kev cai, ib qho - tawm rooj tog txiav txim.
Zhongke CNC Equipment tsim thiab tsim cov tshuab teeb tsa rau koj qhov kev ua haujlwm tshwj xeeb hneev taw thiab tso tawm lub hom phiaj:
Ua hauj lwm rooj Customization:Peb tsim cov khoom uas tsis yog- qauv qhov ntev ntawm lub rooj kom haum raws li cheeb tsam daim ntawv hlau lossis vaj huam sib luag loj.
Spindle Configuration:Xaiv los ntawm huab cua- txias lossis dej- cov kev xaiv txias nrog cov kev ntsuas hluav taws xob sib txawv thiab cov cuab yeej tsis siv neeg- hloov pauv muaj peev xwm.
Automation Integration:Xaiv tag nrho automated loading thiab unloading systems los yog modular conveyor xaiv.
Drilling Unit Configuration:Configure multi-spindle ntsug thiab kab rov tav drilling blocks rau siab- ceev txee tsim.
Software Compatibility:Peb cov kev tswj hwm tau txais tus qauv G-code, koom nrog kev lag luam tsim thiab CAM software.
Kev tshaj lij CNC tshuab tsim cov txheej txheem
Peb cov txheej txheem tsim khoom yog tsom rau cov txheej txheem rigidity, cov khoom sib dhos, thiab kev sib dhos ua ke:
Qauv Fabrication
Heavy-cov dej num steel hauv paus yog welded thiab raug kev ntxhov siab-relieving thermal kev kho mob kom ntseeg tau ntev - lub sij hawm stability.
Precision Machining
Kev taw qhia kev tsheb ciav hlau thiab khib mounting qhov chaw yog machined rau loj -scale gantry milling chaw kom paub tseeb tias qhov sib npaug.
Mechanical Assembly
Cov kev taw qhia tawm thiab cov iav helical yog ua raws los ntawm cov kws tshaj lij uas siv cov khoom siv siab - ntsuas qhov tseeb.
Kev sib xyaw hluav taws xob
Txhua lub txee hluav taws xob yog xaim siv hluav taws xob siv hluav taws xob tiv thaiv kom tsis txhob muaj teeb meem cuam tshuam.
Txhua Nesting CNC Router los ntawm Zhongke CNC Equipment undergoes ib tug nruj multi-theem zoo soj ntsuam kev pab cuam ua ntej xa zaub mov:
Mechanical Alignment Verification
Peb xyuas qhov squareness ntawm lub gantry, flatness ntawm lub rooj, thiab lub verticality ntawm spindle.
Motion System Calibrations
Laser interferometers ntsuas qhov chaw thiab rov ua dua siab dua.
Hluav taws xob kuaj kev nyab xeeb
Tag nrho cov tswj tswj, kev nyab xeeb hloov pauv, thiab cov tshuab hauv av raug kuaj hauv qab load.
Nruam Qhuav -Khiav Test
Lub tshuab tau dhau mus tas li 48-teev kev xeem khiav kom paub tseeb cov qauv thiab hluav taws xob stability.
Qauv Txiav Test
Peb ua lub zes lub cev thiab kev sim drilling ntawm cov neeg siv khoom -cov ntaub ntawv tshwj xeeb kom paub meej tias ntug zoo thiab qhov raug qhov tseeb.
Daim ntawv pov thawj & Ua raws cai
Zhongke CNC Equipment khoom yog tsim nyob rau hauv raws li thoob ntiaj teb kev lag luam machinery qauv. Peb muab:
Daim ntawv pov thawj CE
Ua kom pom kev ua raws li European kev nyab xeeb, kev noj qab haus huv, thiab kev tiv thaiv ib puag ncig.
ISO9001 Kev Tswj Xyuas Zoo
Ua kom txhua tus qauv tsim, sib dhos, kuaj, thiab cov txheej txheem xa khoom raug tswj hwm raws li cov txheej txheem nruj.
Kev teeb tsa & Tom qab -Kev Pabcuam Muag
Txhawm rau kom koj cov kab ntau lawm ua haujlwm tau zoo, peb muab cov kev pabcuam tsim qauv:
Kev taw qhia kev teeb tsa
Peb muab cov txheej txheem hauv paus, kev xav tau hluav taws xob, thiab phau ntawv qhia kev teeb tsa.
Kev Txhawb Nqa Kev Ua Haujlwm
Peb muab kev cob qhia tej thaj chaw deb video npog lub tshuab kev nyab xeeb, tswj kev ua haujlwm, thiab kev tu txhua hnub.
Kev sab laj
Peb pab neeg ua haujlwm engineering muab kev pabcuam rau kev xaiv cov cuab yeej thiab kev ua kom zoo dua qub.
Khoom Muag Khoom
Peb tuav cov khoom lag luam ntawm cov khoom hloov pauv, suav nrog cov tshuab nqus tsev lim, cov pa roj carbon txhuam, sensors, thiab cov cuab yeej siv rau kev xa khoom sai.
Ntim & Kev xa khoom thoob ntiaj teb
Txhua Nesting CNC Router yog npaj rau kev thauj mus los ntev - kom tsis txhob muaj kev puas tsuaj rau lub cev thiab lub cev:
Tiv thaiv xeb
Tag nrho cov hlau liab qab yog coated nrog tiv thaiv los tiv thaiv - xeb roj.
Moisture -Cov ntaub ntawv pov thawj
Lub tshuab raug kaw hauv hnyav- lub luag haujlwm yas qhwv nrog cov khoom desiccant.
Kev ruaj ntseg Transit Fixing
Lub hauv paus tshuab yog bolted ncaj qha mus rau qhov hnyav -lub luag haujlwm steel lossis ntoo thauj khoom skid kom tsis txhob txav mus rau hauv lub thawv.
Ua kom tiav cov ntaub ntawv
Export clearances, coj mus muag invoices, thiab packing npe yog muab los xyuas kom meej kev lis kev cai du.
FAQ
Peb tau zoo-paub tias yog ib qho ntawm cov ua lag luam cnc router manufacturers thiab lwm tus neeg nyob hauv Suav teb. Thov so assured mus yuav cov khoom zoo siab cnc router muag ntawm no los ntawm peb lub hoobkas. Rau nqe kev sab laj, tiv tauj peb.
